Design House Delavan Passage Hall and Closet Door Lever, Satin Nickel
Product details
| Management number | 238690990 | Release Date | 2026/07/11 | List Price | US$11.18 | Model Number | 238690990 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

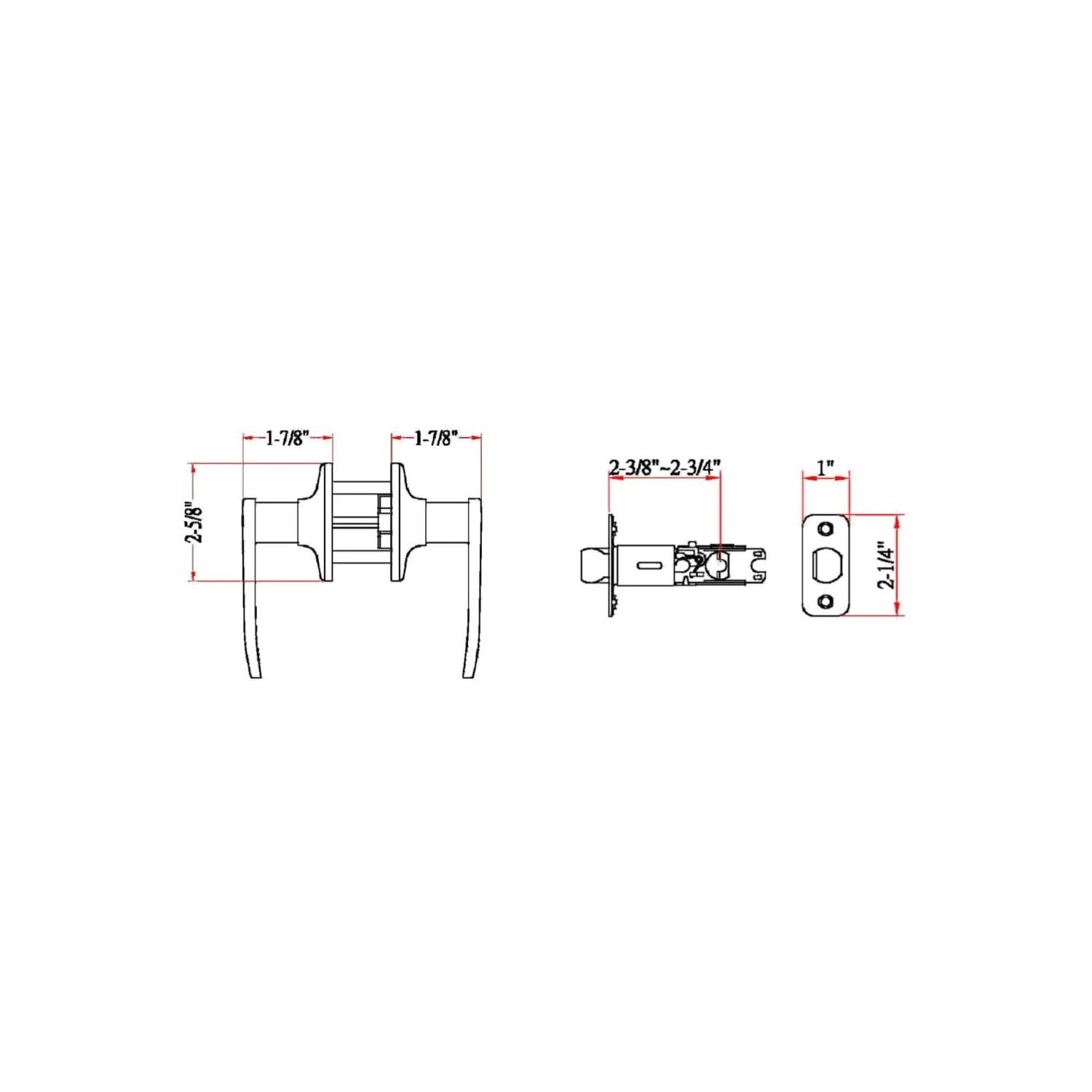

The Design House WM270209 Delevan 2-Way Latch Passage Door Handle is finished in satin nickel and is best suited for bedrooms or closets and doors that do not lock. This knob fits the two most common backsets in the U.S. (backset is the distance from the edge of the door to the center of the borehole), which are 2-3/4 inches and 2-3/8 inches. The 1/2 inches latch bolt is plated in nickel and does not budge once in place. This straight line handle does not include keyed cylinders. Passage knobs do not lock and are used in bedrooms and closets. Use this knob on standard 1-3/8 inches and 1-3/4 inches thick doors. This product has a 1 inch by 2-1/4 inches radius corner faceplate. If you are preparing your door for installation, the cross bore should be 2-1/8 inches in diameter and the edge bore should be 1 inch in diameter. This product is ANSI Grade-3 certified and rated for residential security.
- Finished in satin nickel and designed for left or right hand doors

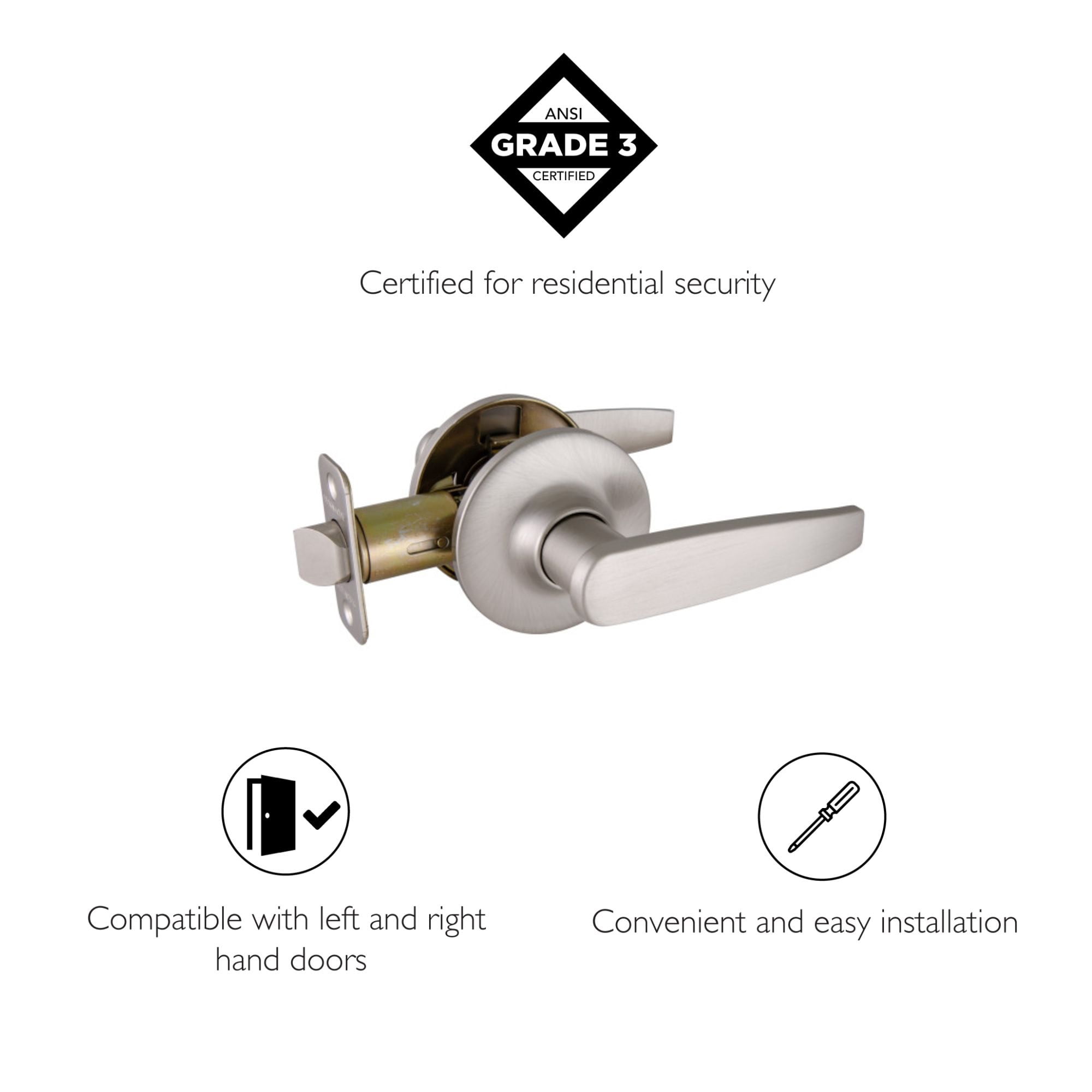

- ANSI Grade-3 Certified for residential security; UL Listed for use on fire doors (3 Hours)
- Fits 2-3/4-inch and 2-3/8-inch backsets; Fits 1-3/8-inch and 1-3/4-inch thick doors
- Passage Lock; No locking function; The knobs or levers freely operate the latch.
- 5-Year limited mechanical/5-Year limited finish warranty
| Door handle set type | Interior Door Handle Sets |
|---|---|
| Brand | Design House |
| Finish | Satin Nickel |
| Material | Brass |
| Handing | Ambidextrous |
| Backset size | 2-3/4 in |
| Ansi class | Grade 3 |
| Features | Easy Installation |
| Color | Satin Nickel |
| Rec. use | Hardware |
| Compatibility | 1-3/8-inch and 1-3/4-inch thick doors |
| Number of keys | 0 |
| Items included | Mounting Hardware Included |
| Pack quantity | 1 |
| Latch types | 2-Way Latch |
| Mount type | Door |
| Orientation | Left |
| Model | WM270209 |
| Projection | 1.875 |
| Size | 5.75 L x 1.875 W x 2.625 H |
| Assembled product weight | 1.49 lb |
